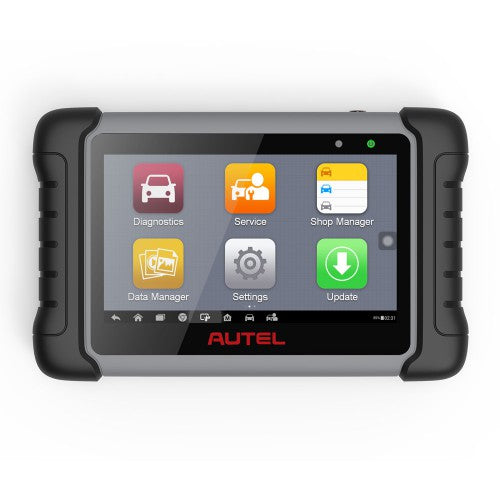

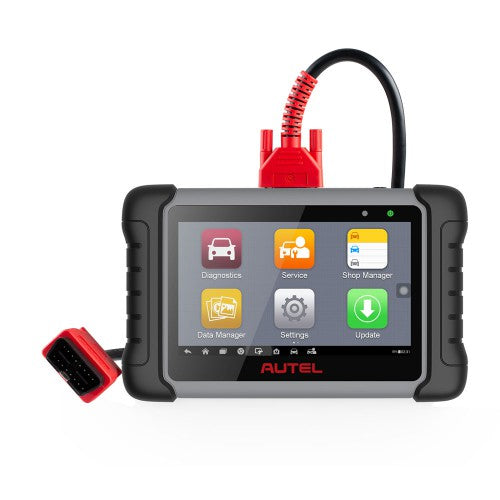

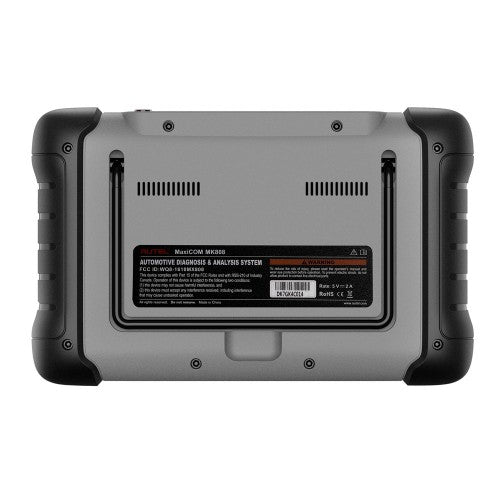

Original Autel MaxiCOM MK808 All System Diagnostic Tablet With 25 Special Functions Multi-Language

Product Description

Autel MaxiCOM MK808 Functions:

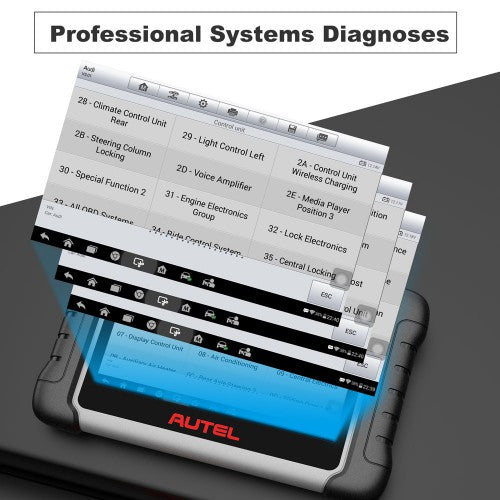

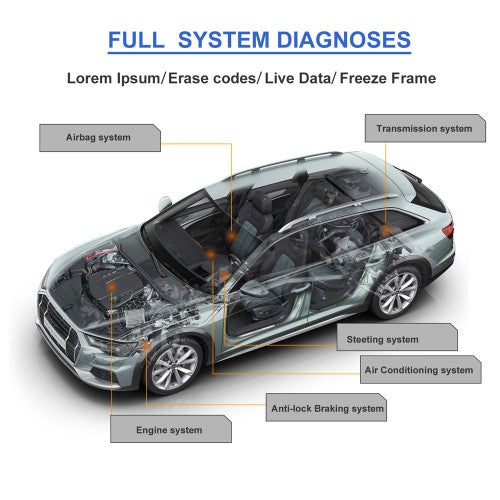

1. Full System Diagnosis: Read and erase codes for all available systems using the supported protocols. The tablet type MaxiCOM diagnostic tool is the best way to display live data in text, graph & analog for easy data review. Autel MK808 can help detect the engine ignition, fuel injection, air and fuel ratio, and exhaust emission conditions in Engine system to enhance vehicle performance, save energy and reduce exhaust emission.It makes great sense in the safety driving when your car is slipping or difficult to shift, this diagnostic tool can figure the problems out via reading codes in the Transmission system, or check the health status via live data viewing.

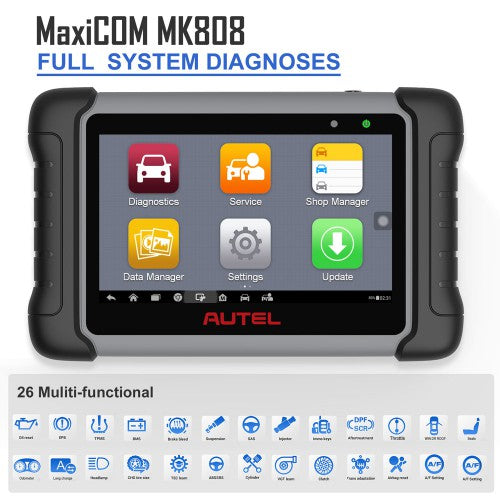

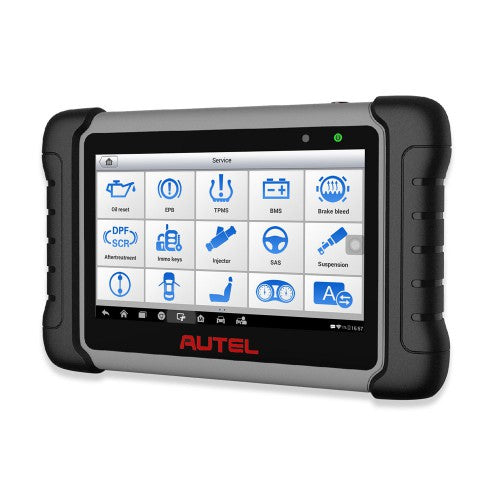

2. Special Service Functions:



Oil reset service allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.
EPB service is important in the maintenance of electronic braking system’s safety and efficiency.
BMS service allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.
DPF service specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.
SAS service helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.
TPMS service makes sense in displaying sensor IDs from the vehicle’s ECU, inputting TPMS sensor replacement IDs and testing sensors.
IMMO, the unique function MK808 has at this price, is mainly used to disable the lost vehicle keys and program a new replacement key fob.

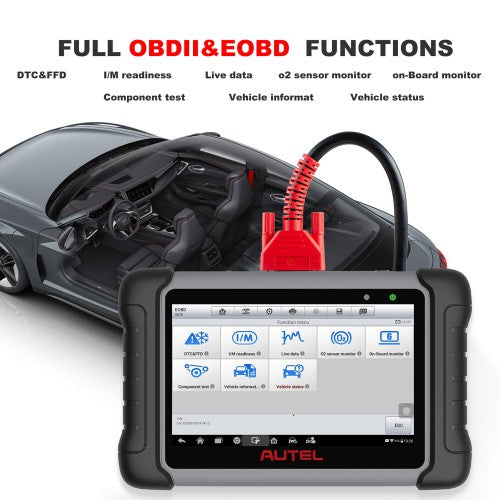

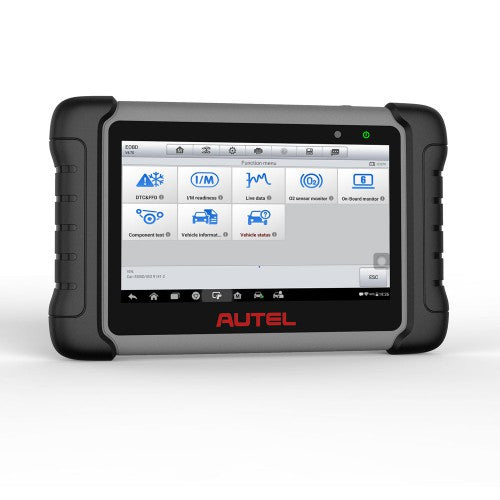

3. Complete OBD2 Functions

1) Reading codes: Show the detailed description of the Diagnostic Trouble Code (DTCs)
2) Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors.
3) Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.
4) I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.
5) Read Live Data Stream: Show the information of continuous data stream from vehicle in live graphic (waveform) display.
6) View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
7) O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle's on-board computer.
8) On-Board Monitor Test: Retrieves and displays test results for emission-related power train components and systems.
9) Read Vehicle Information: Display the information such as VIN (Vehicle identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.
10) Component Test: Allows initiating a leak test for the vehicle's EVAP system.

4. Additional Features:

Superior Mechanics Assistant: In addition to the MaxiCOM standard features and special functions, there are also a host of enhanced features that are specifically designed for common repair shop work, including; Relearn parking brake pad position after replacement, Force fuel injector regeneration and adjustment, Battery registration and reset, Sensor relearning after repair or replacement

Shop Manager – You can well manage the workshop information with 3 available functions within this application: Vehicle History, Workshop Information, and Customer Manager. Intuitively look up the summarized details.
Data Manager – The best solution for the data related operations, you can store, print, and review the saved files in Image, PDF，Review Data, Apps Uninstall or Data Logging.
Remote Desk – you can directly get ad-hoc remote support from Autel via Team Viewer software.

5. The MaxiCOM Diagnostic System Supports 4 methods for Vehicle Identification.

1) Auto VIN Scan: The MaxiCOM diagnostic system features the latest VIN-Based Auto VIN Scan function to identify vehicles and scan all the diagnosable ECUs and run diagnostics on the selected system. This function is compatible with 2006 and newer vehicles.
2) Manual VIN Input: For vehicles not supporting the Auto VIN Scan function, you may manually enter the vehicle VIN.
3) Automatic Selection: The Auto VIN Scan can be selected after selecting the test vehicle manufacturer.
4) Manual Selection: When the vehicle's VIN is not automatically retrievable through the vehicle's ECU, or the specific VIN is unknown, the vehicle can be manually selected.


Autel MaxiCOM MK808 Vehicle Coverage:

Asian and European vehicles after 1996. Utilizes new Auto VIN ID Tech to automatically identify the vehicle's make, model and year without the need for user assistance



Notice:
For Detail Vehicle Coverage List: Please visit Autel Official Website, refer to Support & Updates > Knowledge Base > Vehicle Coverage for details.

Different Choice for Diagnoses:

MK808 is suitable for most OBD2 vehicles and support many car brands like Ford, Honda, Chevrolet, Jeep, Toyota, Dodge, GM, Volkswagen, Audi, BMW, Benz, etc.
When it comes to the Non-OBD2 vehicles, you can connect the device with vehicles via adapters (not included) to complete car diagnoses, and the signal connected will be more stable. This diagnostic tool support different kinds of adapter connection.
