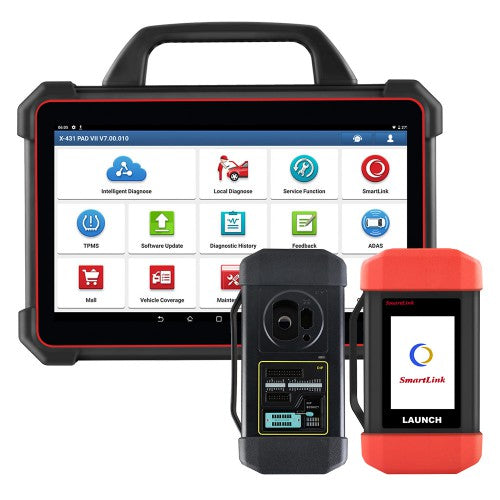

Launch X-431 PAD VII PAD 7 Elite Plus GIII X-Prog 3 Full System Diagnostic Tool Support Key Programming/ Online Coding and ADAS Calibration
Product Description Launch X-431 PAD VII Elite comes with 13.2" touch screen and 32 service functions, which...
Vendor:
Launch
Availability:
Many In Stock
- $2,519.00
$2,699.00- $2,519.00
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
$2,519.00
10 customers are viewing this product
Couldn't load pickup availability
Description
xProduct Description
- Launch X-431 PAD VII Elite comes with 13.2" touch screen and 32 service functions, which is compatible with ADAS calibration function, TPMS service and 8 extended modules.

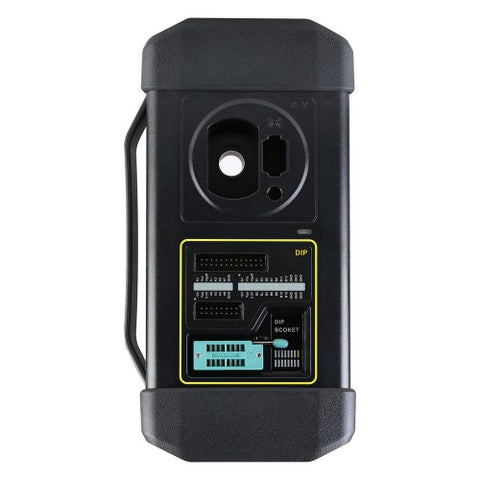

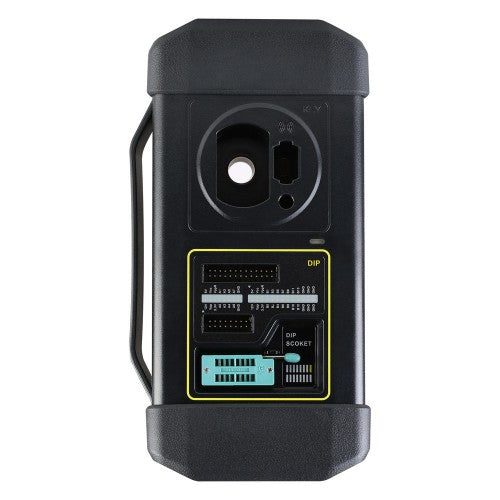

- With the help of GIII X-Prog3, it enables read/write keys, Anti-theft type identification, Remote control matching, Key chip reading & matching, anti-theft password reading and anti-theft component replacement.
Highlights:
1. With 2 Years Free Update Online (Register after Oct 1st, 2022)
2. This is Global Version Without IP Limitation
3. Realtime Remote Diagnosis Function via WiFi
4. Support Commercial Vehicle and Passenger Car Diagnose, Support J2534, CAN FD, DoIP.
5. Multi-Language Supported: English, French, Spanish, German, Russian, Korean, Japanese, Portuguese, Italian, Polish, Dutch, Swedish, Chinese
6. Full System Vehicle Coverage for U.S., Asian and European markets over 110 brands, which is continually updated
7. Special Functions Supported: Injector, Reset Brake Bleed, Reset TPMS, Electronic Throttle Relearn, Reset DPF, Reset SAS, Reset Oil, Reset Brake, Reset BMS
8. With the help of GIII X-Prog3, it enables read/write keys, Anti-theft type identification, Remote control matching, Key chip reading & matching, anti-theft password reading and anti-theft component replacement.
9. Support Online Coding and Programming for Car Brands: BMW, Mercedes, VW, Audi, Seat, Skoda, Porsche, Nissan, Infiniti, Subaru.
Warm Notice:
1. Launch PAD7 Elite can support Mercedes and BMW online coding and programming only in the United States and Canada.
2. Online coding and programming functdions can't perform at all in Spain and Portugal.
Other countries no limitation.
Description:

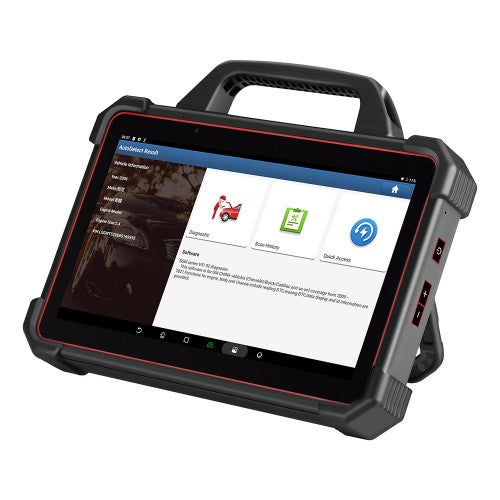

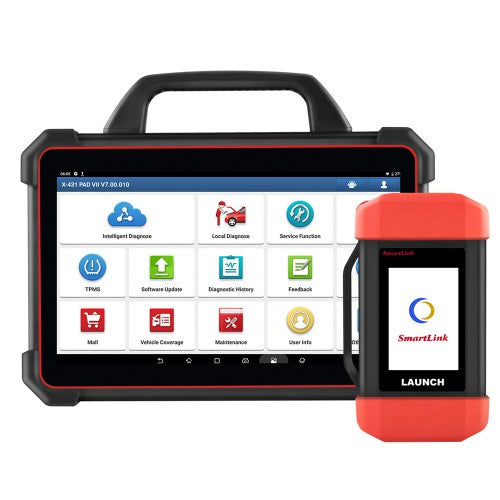

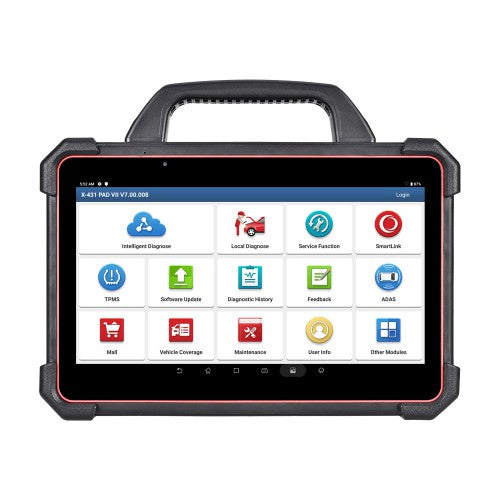

Launch Tech X-431 PAD VII Elite Diagnostic Tool features a 13.3" touchscreen, 32 service functions, and Smartlink remote diagnosis. The outer shell is designed to withstand workshop hazards such as water and dust damage and is in compliance with IP65. The X-431 PAD VII Elite uses a high-capacity and high power battery to ensure a longer battery life with a shorter charging time. The tool offers topology mapping and a new module 'MALL' for users to expand and upgrade the tool with more diagnosis software. The X-431 PAD VII Elite supports ADAS calibration and eight extended modules such as videoscope, oscilloscope, sensor box, TPMS tools, key immobilizer, and battery tester.
X-431 PAD VII Elite is a high-end comprehensive diagnostic tool with charging base newly developed on the basis of Android 9.0. It supports dual 2.4GHz &5GHz Wi-Fi communication. In addition to supporting the functions of pad v products, it mainly features 13.3inch high-definition display, 8 + 256 storage space, especially with SmartLink C, which can support SmartLink remote diagnosis.
Superior Hardware Make Diagnosis Faster Than Ever
X-431 PAD VII Elite is an unexpected high-end diagnostic, comes with a 13.3 inch large touch screen, 32 service functions and Smartlink remote diagnosis. Equipped with the 2.0GHz Octa-core optimized chipset, Android 9.0 operating system, 8G memory and 256G large storagememories, X- 431 PAD VII Elite makes your intelligent diagnosis faster than ever. The precision-machined outer shell is designed to work against workshop hazards such as water and dust damage and in compliance with IP65.
The X-431 PAD VII Elite uses a high-capacity (about 19,000 mAh) and high power battery to ensure a longer battery life but a shorter charging time. Moreover, X-431 PAD VII Elite improves the connection between scanner and VCI into "Dual WiFi' connectivity, which allows the VCI to maintain faster and stable connection during diagnostics.
Launch X-431 PAD VII Elite Features:
1. Real-time voltage display helps technician to monitor the voltage condition of vehicle during the diagnosis
2. Topology mapping gives a visual checking on DTCs and all systems communication status
3. Support automotive communication protocols CAN/CANFD/DoIP and automotive communication standards J2534/D-PDU/RP1210
4. Auto-detects the communications protocol of the vehicle and assist to check automotive OBDII port pin damaged or not
5. Intelligent diagnostic enable identify VIN automatically and access system quickly
6. Guided function for VW and AUDI
7. Optional ADAS calibration function increases more revenue
8. Advanced coding and programming function
9. An extended solutio to support TPMS service
10. 2.4GHz & 5GHz dual band communication ensures quick and stable connection
11. Empower technician to diagnose light, medium & heavy duty vehicles with Smarlink C
12. The basic functions include read & clear DTC, remote diagnosis, Bi-directional control, live data graph, wireless software update etc.
13. Build-in repair information and training video modules help to track and fix issue fast.
Accurate ADAS Calibration functions
Advanced Driver Assistance System (ADAS) is an electronic component in a vehicle, including various safety functions of the vehicle, such as automatic emergency braking (AEB), lane departure warning (LDW),lane keeping assist, blind spot elimination, night vision camera and Adaptive lighting. (NOTE: Need to be purchased separately)
Functions:
1. Check the DTCs and all systems communication status visually by topology module mapping function.
2. Auto-detects the communications protocol of the vehicle uses, assist to check OBDII connector pin damaged or not.
3. Check the DTCs and all systems communication status visually by topology module mapping function.
4. Powerful diagnostic functions (intelligent diagnosis, remote diagnosis, read DTC, clear DTC, read data stream, actuation test), accurate diagnostic data, and abundant special functions.
5. Display I/M Readiness Status.
6. Read data stream: Support diverse data stream display modes and user-defined standard data stream.
7. Local diagnose: When the intelligent diagnosis is not available in an environment without network, choose traditional diagnosis. Select the vehicle make and model manually to perform the vehicle detection.
Powerful Special Functions:
Component Replacement, Cylinder Compression Test, Injector Cut Out Test, DPF Regeneration, Communicates with ABS & Transmissions from Bendix, Wabco and Allison, Tech to Tech remote communication function
The powerful Smartlink C VCI powers the diagnostic to a new level. Users are available to perform remote diagnosis without being on-site and
the limitation of diagnostic functions, tools and vehicle types.
It is able to assist technician to identify the OBDII port pin automatically and display the real-time voltage for voltage condition
monitoring during live diagnostics.
32 Service Functions:
Service Lamp Reset
Electronic Throttle
Brake Reset
Immobilizer Reset
Battery Reset
Injector Coding
SAS Reset
TPMS Reset
ABS Bleeding
Gear Learning
DPF Regeneration
Gearbox Reset
Headlamp Reset
Sunroof Initialization
SUS Reset
EGR Adaption
A/F Reset
AdBlue Reset
Nox Sensor Reset
Stop/Start settings
Transport Mode
Coolant Bleed
Windows Calibrations
Seat Calibrations
Tyre Reset
Language Change
Vehicle Coverage:
Passenger Vehicles:
1. Australian: AUST Holden, AUST Ford
2. Asian: Toyota/ Lexus, Honda/ Acura, Mazda, Subaru, Nissan/ Infiniti, Mitsubishi, Hyundai, Isuzu, Daihatsu, KIA, Daewoo, Suzuki, Proton, Tata, Mahindra, Ssangyong, Perodua, Maruti
3. European: Audi, Mercedes/ Maybach, BMW/ MINI/ Rolls Royce, VW/ Bentley/ Bugatti, Opel/ Vauxhall, Peugeot, Citroen, Volvo, Sprinter, Renault/ Dacia, Fiat/ Romeo/ Abarth/ Lancia, Rover, Landrover, Saab, Seat, Skoda, Smart, Maserati, Ferrari, Arston Martin, Porsche, Jaguar
4. USA: USA Ford/ Lincoln, GM/ Buick/ Cadillac/ Chevrolet, Chrysler/ Dodge/ Jeep
5. Chinese: Changcheng (Great Wall), Geely, Qirui_TY(Cherry), Futian, Changan, Changhe, Haifei ….etc.
6. Special: Immobilizer/ Key, Injector, Reset Brake Bleed, Reset TPMS, Electronic Throttle Relearn, Reset DPF, Reset SAS, Reset Oil, Reset Brake, Reset BMS
7. Others: EOBD, Demo
Heavy Duty Vehicles (Need to Pay Heavy Duty License and Adpater Set):
Nissan (Diesel)
Mitsubishi (Diesel)
USA Ford Diesel, Kenworth
Astra, Benz Heavy Duty, Bosch Diesel, China Heavy Duty, Cummins Heavy Duty, DAF, Delphi Diesel
Denso Diesel, FAW Liberation, Foton Auman, FUSO, Hino, Hyundai Heavy Duty, Isuzu Heavy Duty
Iveco Heavy Duty, JAC Heavy Duty, Mack , MAN , OBD Heavy Duty, Scania, Shangchai Diesel, Volvo Heavy Duty
WP Diesel, Airbus, Allison Transmission Box, Ashok Rejlander, Bendix ABS, Caterpillar Heavy Duty
Chai Heavy Vehicle, Chaoyang Diesel, Construction Machinery, CREDO Heavy Vechicle, Detroit Engine
Dongfeng Commercial Vehicle, Dongfeng Yufeng, Doosan Engine, Freightliner Heavy Duty Truck
Full Diesel Diagnosis Software, Haldex ABS Heavy Duty, HD_ABS System, HD_GoldenDragon, HD_International
HD_Kinglong, HD_Maxxforce, HD_Tata, HD_Western_Star, Heavy Truck Presentation Software
IRISBUS HD, IRIZAR HD, NEOPLAN HD, Peter HD, Renault HD, SETRA HD, Stannic Bavin, Sterling HD
Sunlong Bus, Sunwin Bus, UD Trucks 2F Nissan Diesel, WABCO ABS, Yang Chai Engine

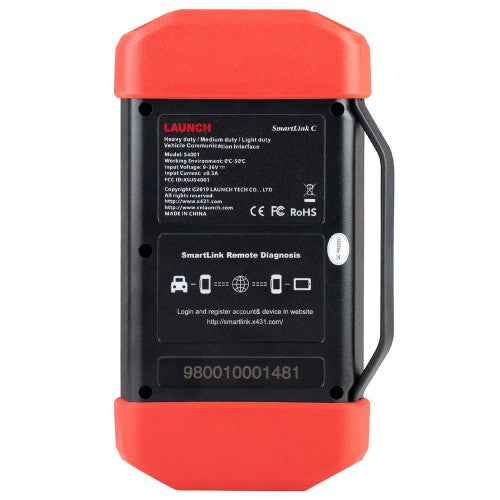

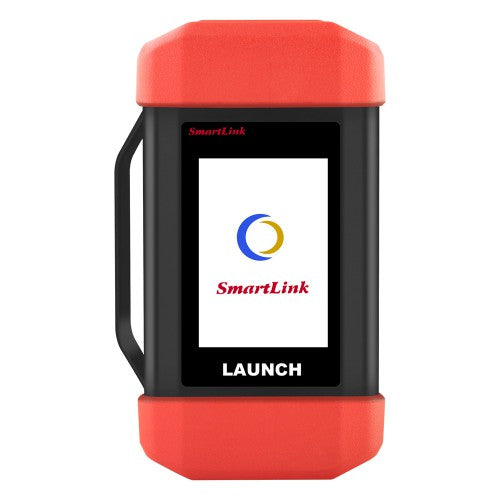

Smartlink C VCI
Smartlink C is a new generation intelligent diagnostic box with Linux system independently developed by Launch, which supports multiple communication modes (USB, BT, WIFI) and multiple diagnostic protocols. It can be used alone as a remote diagnosis box for SmartLink remote diagnosis, or as a pass-thru tool to connect with OEM software.
* Support D-PDU / J2534 / RP1210 diagnostic standard, and cover passenger cars and commercial vehicles at the same time
* Support the latest diagnosis protocol of CAN/DOIP / CAN FD
* Support 2.4G/5G dual band
* Support online upgrade
In the SmartLink ecology system, if a technician (SmartLink C) does not have time to puzzle through a touch vehicle problem, he can seek a trusted second opinion or additional expertise on various vehicle issues from remote master technicians or repair shops (SmartLink B). SmartLink B enables the shop owner to greatly increase customer's retention and boost shop revenue by providing the professional technical assistance service.
It mainly consists of the following parts:
Launch X-431 PAD VII Elite Specification:
|
X-431 PAD VII Elite |
Smartlink |
|
|
Operation System |
Andorid 9.0 |
N/A |
|
CPU |
2.0GHz Octa-core |
N/A |
|
Display |
13.3' touch screen 1920*1080 |
3.5' touch screen 320*480 |
|
Memory |
8GB |
256M |
|
Storage |
256GB |
8GB |
|
Camera |
Rear 13MP, Front 8MP |
N/A |
|
WiFi |
Dual Band 2.4 & 5GHz |
Dual Band 2.4 & 5GHz |
|
Diagnostic Communication |
WiFi |
WiFi & BT & USB |
|
Working Temperature |
0℃~50℃ |
0℃~50℃ |
|

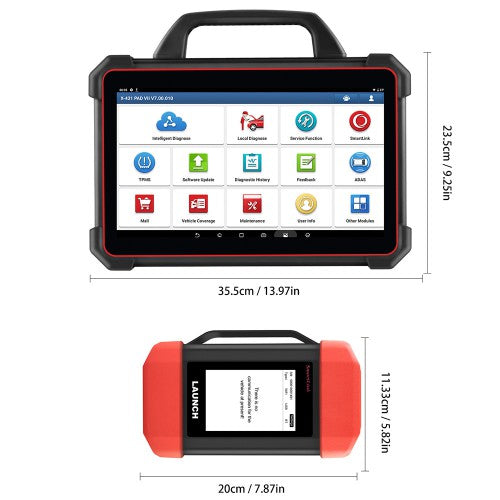

Dimension |
353*236*71 mm |
204*110*45 mm |

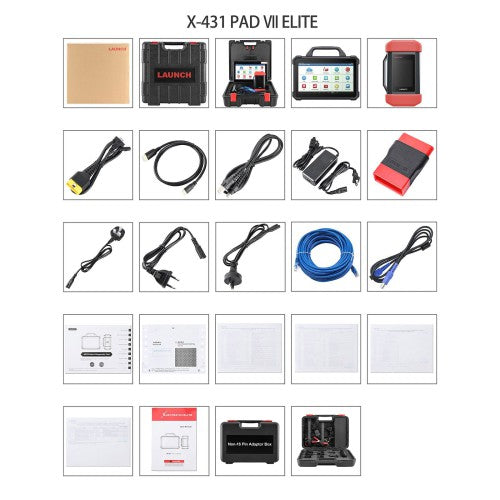

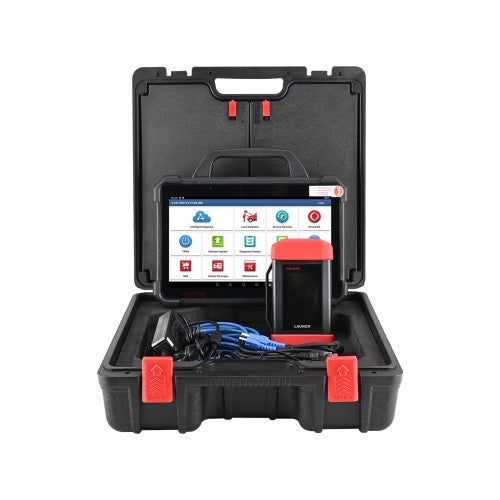

Package List:
1x X-431 PAD VII Elite Main Unit
1x Smartlink C diagnostic connector
1x Micro USB cable
1x Cigarette lighter cable
1x 5V DC out power adaptor
1x Battery clamps cable
1x OBD II extension cable
1x Non-16pin connector converting cabel
1x Password envelope
1x Non-16pin connectors set

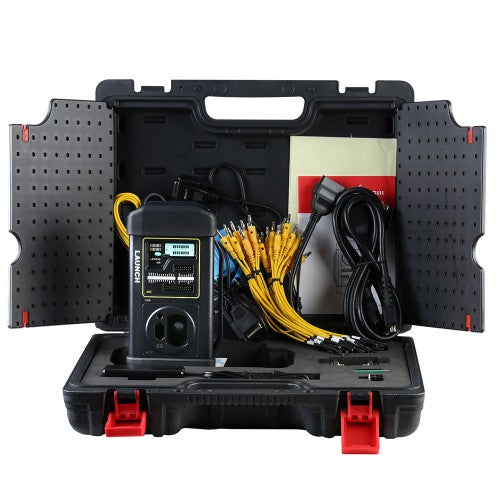

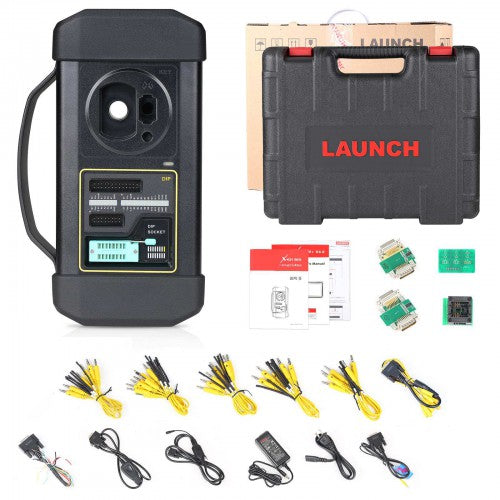

1set x Launch GIII X-Prog3
